Medical Device

FEATURES OF NEMOA™ SPLINT

Nemoa™ Splint is used for support or immobilization of a limb. It is use in post surgical procedures and acute trauma treatment of fracture, sprains, soft tissue injuries, etc.

• Great Strength and Molding
  Nemoa™ Splint provides a superior strength splint, more than generally required. Nemoa™ Splint conforms easily to the body contours.
• Neat Appearance

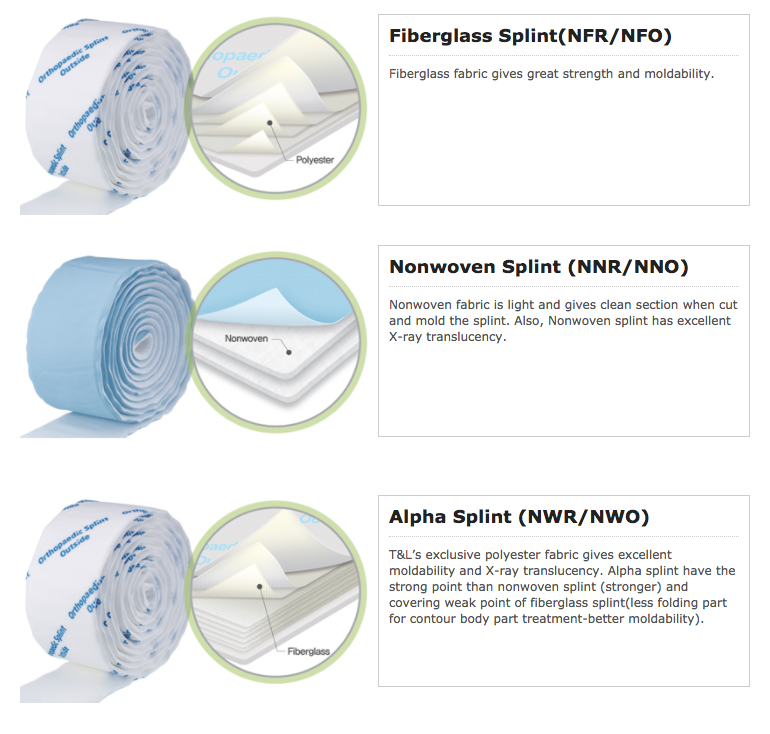

  The Fiberglass(NFR, NFO) or polyester nonwoven (NNR, NNO / NWR, NWO) substrate is secured between the two surface layers which are ultrasonically sealed alone the outer edges to give a clean, neat seal.
• Water Repellency and Molding
  Since the padded surface material on the patient side is hydrophobic in nature. It provides a comfortable and dry surface to the adjacent skin. The water easily dry through the structure of the outside, allowing the substrate to be quickly activated.

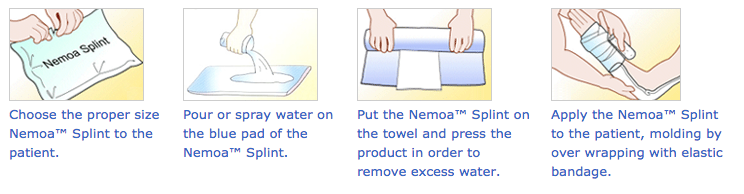

APPLICATION

PRECAUTIONS

Store Nemoa™ Splint in a dry place at the temperature of 15~20° C.

ORDER CODE

1. Roll Type



   Code No.	Size	Rolls/Box
   NFR-2045	2inch * 4.5m(2inch*15ft)	1
   NFR-3045	3inch * 4.5m(3inch*15ft)	1
   NFR-4045	4inch * 4.5m(4inch*15ft)	1
   NFR-5045	5inch * 4.5m(5inch*15ft)	1
   NFR-6045	6inch * 4.5m(6inch*15ft)	1

2. One Step Type (Precut Type)



   Code No.	Size	Rolls/Box
   NCP-2010	2inch * 10inch (2inch*25cm)	5
   NCP-3012	3inch * 12inch (3inch*30cm)	5
   NCP-3035	3inch * 35inch (3inch*88cm)	5
   NCP-4015	4inch * 15inch (4inch*38cm)	5
   NCP-4030	4inch * 30inch (4inch*75cm)	5
   NCP-5030	5inch * 30inch (5inch*75cm)	5
   NCP-5045	5inch * 30inch (5inch*75cm)	5
   NCP-6030	5inch * 30inch (5inch*75cm)	5
   NCP-6045	6inch * 45inch (6inch*113cm)	5
